TWC-450 Top Waler Clamp photo
Cross section drawing of TWC-450 Top Waler Clamp on form panels                TWC-450 on wall forms photo

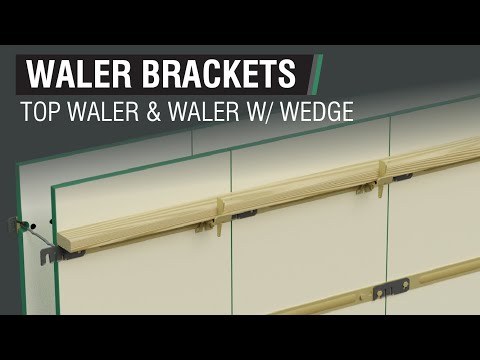

WBW-4 Waler w/ Wedge, 4"

The slotted end of the versatile WBW slips over a hex shoulder bolt anywhere on a 1-1/8" form panel. The rounded-corner wedge securely tightens a 2 x 4 wedge against the plywood form panel. When used on the top bar of 6-bar forms, the WBW is a slick alternative to the Top Waler Clamp: easier to set up and strip, it also leaves the top of the forms free of obstructions for easier concrete pouring and finishing.

When used with 4- or 5-bar panels, the WBW can hold a mid-wall waler when stacking panels for high walls.

WBW 4" Waler with Wedge photo
cross section drawing of WBW-4 in use on form panels
WB-6 Waler Bracket, 6"

The WB-6 is formed from a single piece of high-strength steel--no welds to compromise the strength and durability of this standard waler bracket. Designed to hold a 2 x 6 waler against the form panels, the WB-6 is virtually indestructible.

WB-6 Waler Bracket photo

WBW's on wall overview  WBW's on wall detail

TWC-450 Top Waler Clamp

TWC's quickly clamp a 2 x 4 to the top of your 1-1/8" form panels to straighten the wall and make an even joint between adjacent form panels. Top Waler Clamps elimate the damage from nailing or screwing 2 x 4 walers directly to form panels. The rugged TWC is formed from heavy-gauge, high-strength steel for years of service. With a rounded-corner wedge and chamfered corners on the body, it's also safer to use.
