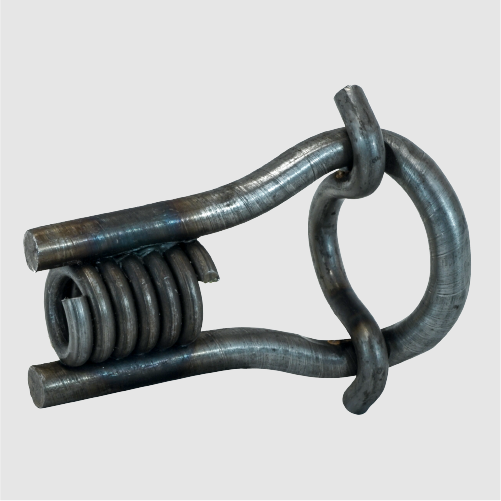

RH-6 Rebar Hook

Universal connectors for coil rod to rebar
Four standard Rebar Hooks available, for 1/2", 3/4" coil rod and 15mm euro rod
No extra hardware required for attachment
Low labor cost: fast connection is quickly made with gloved hands
Fits in tight spaces: little clearance around rebar needed for attachment
Connects anywhere along length of rebar
Welded to rigorous standards using computer-controlled equipment
Use with Transition Ties™ for Stay-Form® blindside walls
Up to 3000 lbs Safe Working Load (2-to-1 safety factor)



SC Snap-Coil Tie

The Steel Dog® RH Rebar Hooks are multipurpose couplers for making a fast field connection between threaded rod and rebar up to #8 in size. A simple "push and twist" action is all that is needed to make the connection; the coil rod itself keeps the Rebar Hook in place on the rebar.

One of the most common uses, shown below, is using the RH with a Steel Dog® Transition Tie™ to make a low-cost, adjustable-length tie for forming Stay-Form® blindside walls with a variety of different handset form panels.

Transition Ties
footing brackets
1-1/8" form hardware
other concrete accessories

  RH-6 Rebar Hooks and LC-6 Loop-Coil Ties used on Stay-Form blindside wall job
  Stay-Form blindside wall

  RH-6 Rebar Hooks and LC-6 Loop-Coil Ties used on curved Stay-Form blindside wall job
  Curved Stay-Form wall

  Sheet Piling one-sided wall pour with Loop-Coil Ties and Rebar Hooks
  Sheet piling one-sided wall

  Rebar Hooks used as long-tie substitute

Large tower base
